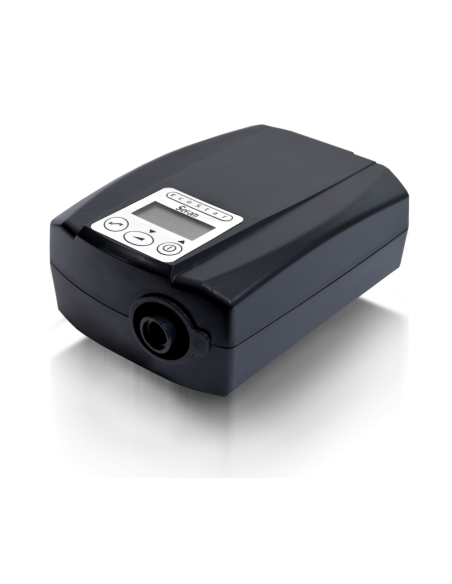

CPAP Ecostar de Sefam

Technical specifications:

• Operating mode: Continuous (CPAP). Continuous Positive Airway Pressure.

• Dimensions: 145x202x79mm (width, depth, height).

• Weight: 0.644 kg. Very lightweight (excluding power supply).

• Pressure range: 4 – 20 cmH2O. Adjustable in increments of 0.5 cmH2O. Pressure range the CPAP can deliver. 1 cmH2O equals 98.0665 pascals.

• Pressure range in Pascals: 392-1960 Pa or 4-20 hPa (hectopascals).

• Noise level: 27 dBA. Measured with device running at 10 hPa (equivalent to 10 cmH2O) and at a distance of one meter. 2 dBA margin complying with ISO 17510-1:2002 (ISO quality standards).

• Altitude compensation: Automatic. Important for travel. Compensates pressure depending on the patient's altitude.

• Humidifier: Not included. The humidifier allows for regulating the temperature and humidity of the incoming air.

• Ramp time: 0-30 minutes. Pressure adjustable throughout the ramp (every 5 minutes). The ramp is used for patients who may have difficulty falling asleep due to pressure, initially providing lower pressure and gradually increasing it.

• Voltage: AC100 – 240V, 50/60Hz, 0.5-0.3A. Compatible with Spanish outlets.

• Operating temperature range: 5 to 40ºC (5 to 35ºC with humidifier). Sufficient for room temperature during sleep.

• Operating humidity range: 10% to 95% RH (relative humidity) without condensation. Suitable for ambient humidity during sleep.

• Storage temperature range: -20 to 60ºC.

• Storage humidity range: 0% to 95% RH without condensation
